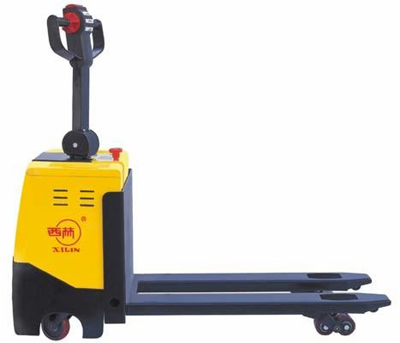

Electric pallet truck CBD12


Advantages:
·Small, robust design for pallet movement in light applications.
·Multi-function handle for easy operation.
·With safe electro-magnetic braking system.

Main specifications:



MODEL

CBD12

Capacity

Q(kg)

1200

Load centre distance

c(mm)

600

Service weight (with battery)

kg

330/340/350

Max. lift height

h3(mm)

120

Lowered fork height

h13(mm)

85

Fork dimensions

s/e/l(mm)

53x160x1150 (1100/1220)

Distance between fork-arms

b5(mm)

520/550/650

Tread, rear

b11(mm)

360/390/490

Aisle width for pallets 1000x1200 crossways

Ast(mm)

2154/2204/2274

Aisle width for pallets 800x1200 lengthways

Ast(mm)

2028/2078/2148

Turning radius

Wa(mm)

1350/1400/1470

Max.gradeability,laden/unladen

%

5/10

Drive motor rating S2 60 min

kW

0.55

Battery voltage, nominal capacity K5

V/Ah

24/120

Battery weight

kg

90

Battery dimensions l/w/h

mm

360x170x245
