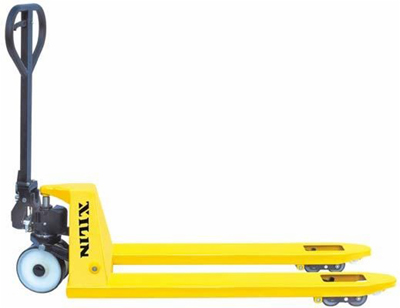

Pallet Truck NF 2.0-2.5T


Features:
Most compact and popular design of pumping unit.
Very standard versions for finished using a tough epoxy based coating which is resistant to chips and normal corrosion.
Heavy duty forks for greatest strength, durability and supper strong frame. With cast steel lifting joints.
3 position control lever Lifting-Neutral-Lowering hydraulic encased in protective steel housing.
Excellent turning angle of 180 degree facilities
Option:Nylon wheel,polyurethane wheel rubber wheel.Single fork roller or tandem fork roller.
Remark:(1)Capacity 3000kg available.
(2)Special size for width and length can be made according to customer's requiremen.

Main specifications:



Model

NF

Capacity

Q(kg)

2000/2500

Service weight

kg

75-102

Steering wheel

mm

φ200

Fork wheel

mm

φ83

Max. lift height

h3(mm)

110

Total height

h14(mm)

1160.5

Lowered fork height

h13(mm)

85

Overall length

l1(mm)

1545/1615

Fork dimensions

s/e/l

53/160/1150(1220)

Distance between fork-arms

b5(mm)

520/550/685

Ground clearance,centre of wheelbase

m2(mm)

32

Aisle width for pallets 1000x1200 crossways

Ast(mm)

1745/1815

Aisle width for pallets 800x1200 lengthways

Ast(mm)

1790/1815

Turning radius

Wa(mm)

1280/1350
