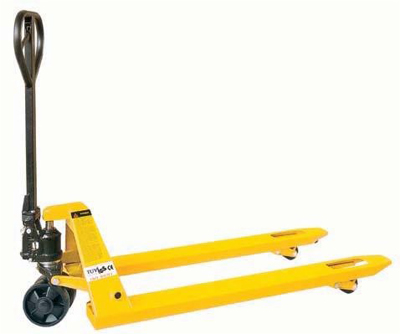

Pallet Truck DF 2.0T


Features:
The oil pump boby is made bu way of welding the prefabric-ated parts together first,then machining the welded boby.
Chrome piston and ram for smooth operation and prevents excseeive wear on the pump & seal.
Excellent turning angle of 180 degress facilities.
Number of pump strokes-10.Lift height per stroke:11mm.
Option:nylon wheel,polyurethane wheel,rubber wheel single fork roller or tandem fork roller.
Remark:
(1) Capacity 2000/3000kg available.
(2) Special size for width and length can be made according to customer's requirement.

Main specifications:



Model

DF

Capacity

Q(kg)

2500

2500

Service weight

kg

65-77

65-77

Steering wheel

mm

φ180

φ180

Fork wheel

mm

φ80

φ74

Max. lift height

h3(mm)

115

115

Total height

h14(mm)

1233.5

1223.5

Lowered fork height

h13(mm)

85

75

Overall length

l1(mm)

1528.5/1598.5

1528.5/1598.5

Fork dimensions

s/e/l

53/160/1150(1220)

53/160/1150(1220)

Distance between fork-arms

b5(mm)

520/550/685

520/550/685

Ground clearance,centre of wheelbase

m2(mm)

32

22

Aisle width for pallets 1000x1200 crossways

Ast(mm)

1728.5/1798.5

1728.5/1798.5

Aisle width for pallets 800x1200 lengthways

Ast(mm)

1778.5/1798.5

1778.5/1798.5

Turning radius

Wa(mm)

1244.5/1314.5

1244.5/1314.5
