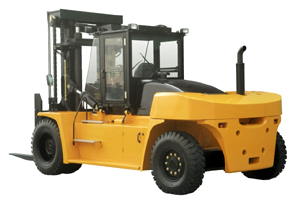

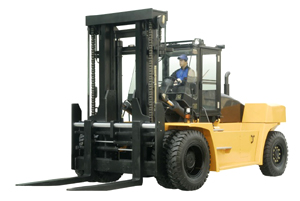

Diesel Forklift 14t-16t |
|
|
|
|
|
|
|
|
Frame
Vertical sides help the drive work safely with less damage, even in an area with low-level obstructions. Thick chassis plates resist distortion, reduce damage and minimize refurbishment costs.

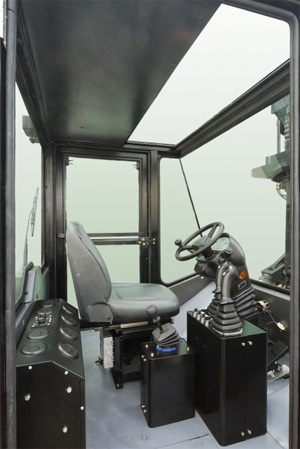

The wide mast, low scuttle and high seating position gives the operator an excellent view of the forks and of the way ahead-reducing load damage and accident.
Well positioned lights ensure optimum vision to both the front and back-essential in containers.
Much attention has been given to the carriage design, with an integral fork positioner.
Easier maintenance and servicing
Along with the kind of engineering that promises unsurpassed performance and productivity in all applications. Our forklifts are designed with many features that facilitate maintenance and servicing. For example, the wide-opening top panel and radiator cover are equipped with gas stays and convenient hand grips that enable quick access to the engine compartment.
Non-slip floor and step
The wide-open step is not only convenient to use but safer thanks to anti-slip mats. To further improve safety in demanding work conditions, the floor board is constructed of embossed steel to reduce of possibility of slipping. |
|
|
Model |
Power type |
Rated capacity (kg) |
Load center (mm) |
Lift height (mm) |
Engine |
Trans-mission |
Model |
Manu-facture |
Rated output (kw/rpm) |
CPCD140-W2 |
Diesel |
14000 |
900 |
3000 |
6BTA5.9 |
CUMMINS |
138/2300 |
GERMAN |
CPCD160-W2 |
Diesel |
16000 |
900 |
3000 |
6BTA5.9 |
CUMMINS |
138/2300 |
GERMAN |
CPCD140-W25 |
Diesel |
14000 |
900 |
3000 |
QSB6.7 |
CUMMINS |
142/2300 |
GERMAN |
CPCD160-W25 |
Diesel |
16000 |
900 |
3000 |
QSB6.7 |
CUMMINS |
142/2300 |
GERMAN |
CPCD160-AW2 |
Diesel |
16000 |
1200 |
3000 |
6BTA5.9 |
CUMMINS |
138/2300 |
GERMAN |
CPCD160-AW25 |
Diesel |
16000 |
1200 |
3000 |
QSB6.7 |
CUMMINS |
142/2300 |
GERMAN |
|
|
Type |
Model |
Max. fork Height |
Overall height |
Tilt range |
Lowered |
Extended |
FWD |
RWD |
With Backrest |
mm |
mm |
mm |
Deg |
Deg |
Wide view mast |
G140MX |
3000 |
3350 |
4850 |
6 |
12 |
3300 |
3500 |
5150 |
6 |
12 |
3600 |
3650 |
5450 |
6 |
12 |
4000 |
3850 |
5850 |
6 |
12 |
4300 |
4050 |
6200 |
6 |
12 |
4500 |
4150 |
6400 |
6 |
12 |
4800 |
4300 |
6700 |
6 |
6 |
5000 |
4400 |
6900 |
6 |
6 |
5500 |
4700 |
7450 |
3 |
6 |
6000 |
4950 |
7950 |
3 |
6 |
6500 |
5250 |
8500 |
3 |
6 |
Wide view mast |
G160MX |
3000 |
3500 |
5000 |
6 |
12 |
3300 |
3650 |
5300 |
6 |
12 |
3600 |
3800 |
5600 |
6 |
12 |
4000 |
4000 |
6000 |
6 |
12 |
4300 |
4200 |
6350 |
6 |
12 |
4500 |
4300 |
6550 |
6 |
12 |
4800 |
4450 |
6850 |
6 |
6 |
5000 |
4550 |
7050 |
6 |
6 |
5500 |
4850 |
7600 |
3 |
6 |
6000 |
5100 |
8100 |
3 |
6 |
6500 |
5400 |
8650 |
3 |
6 |
|
The Standard mast of forklift is 2-stasge 3000mm, different mast specifications are provided above. |
