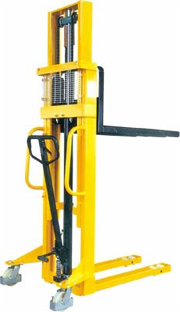

Manual stacker SDJ1025


Advantages:
·Robust Steel profile construction.
·An economical lift to handle tasks from transporting dies and moulds skids and pallets.
·Sturdy and compact enough to fit through standard doors and to operate in congested areas.
·Precision engineered for smooth performance and exceptional durability.
·Lifting function operated by foot and hand controls.
·Allow the operator to work without having to perform extreme body movements.
·SDJ with fixed forks

Main specifications:



Model



SDJ1025

SDJ1030

Load capacity/rated load

Q(kg)

1000

1000

Load centre distance

c(mm)

600

600

Service weight

kg

276

307

Height, mast lowered

h1(mm)

1838

2080

Max. lift height

h3(mm)

2500

3000

Height, mast extended

h4(mm)

2925

3420

Lowered fork height

h13(mm)

90

90

Overall length

l1(mm)

1655/1705

1655/1705

Overall width

b1(mm)

860

860

Fork dimensions

s/e/l(mm)

61/170/1100(1150)

61/170/1100(1150)

Distance between fork-arms

b5(mm)

550

550

Round clearance, laden,below mast

m1(mm)

25

25

Aisle width for pallets 1000x1200 crossways

Ast(mm)

1855/1905

1855/1905

Aisle width for pallets 800x1200 lengthways

Ast(mm)

1906/1958

1906/1958

Turning radius

Wa(mm)

1380

1380

Lift speed,laden/unladen

mm/s

25

25

Lowering speed,laden/unladen

mm/s

Manual control
