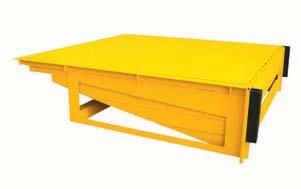

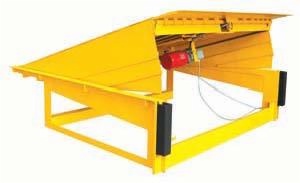

| Dock Level |
|
|
| |
|
Production introduction:
◇ Completely hydraulic drive, convenient operation and reliable function
◇ platform and lip board adopt hinges with long axis, high intensity, fine credibility
◇ Imported sealed components make sure that hydraulic system has excellent seal capability.
◇ Imported whole module style hydraulic station, good seal capability and long life
◇ Design of "U"shape girder with high intensity guarantees that high load function doesn't distortafter long-playing running.
◇ Adopt non-slipping flower pattern steel board to make platform has good antiskid performance.
◇ Set roll-protection foot skirt board both on two sides to prevent toes extending to platform and cause accidents.
◇ Set security knighthead to protect maintainers when they are in dock ramps.
|
| |
|
Model |
Rating load |
table size |
Width |
length |
Size |
(mm) |
(mm) |
(t) |
(mm) |
(mm) |
up |
up |
L |
W |
H |
DCQ 6-0.55 |
6 |
2000*2000 |
400 |
300 |
250 |
2080 |
2040 |
600 |
DCQ 6-0.7 |
6 |
2500*2000 |
400 |
400 |
300 |
2580 |
2040 |
600 |
DCQ 8-0.55 |
8 |
2000*2000 |
400 |
300 |
250 |
2080 |
2040 |
600 |
DCQ 8-0.7 |
8 |
2500*2000 |
400 |
400 |
300 |
2580 |
2040 |
600 |
DCQ 10-0.55 |
10 |
2000*2000 |
400 |
300 |
250 |
2080 |
2040 |
600 |
DCQ 10-0.55 |
10 |
2500*2000 |
400 |
400 |
300 |
2580 |
2040 |
600 |
|
Container loading ramp
