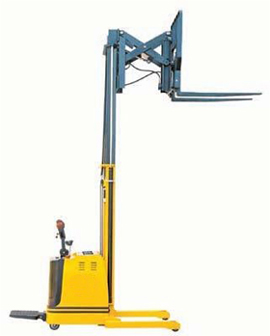

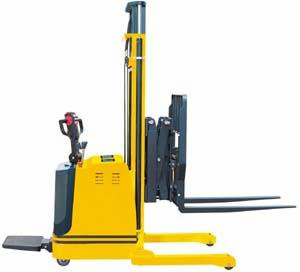

Eléctrica Reach Stacker


Advantages:
Can lift and move the goods, meanwhite drive the goods move before and after through scissors stretching,whick achieves the cross-shelf storage of goods,especially for the narrow aisle operation.It can be used in warehouse,and also lifts for the installment and disassembly of the medium or small moulds in factory.
Owing to its small size,light weight and flexible operation.The price performance ratio is more competitive than the Reach Lift Forklift of the same function.
The improved new design increases the height and weight of lifting,and the nice looking as well as the high reliability.


Main specifications:



Model



CQD10A-Ⅱ

CQD12A-Ⅱ

Capacity

Q(kg)

10100

1250

Load centre distance

C(mm)

400

400

Load distance,centre of drive axle to fork

X(mm)

375

375

Wheelbase

y(mm)

1377

1290

Service weight (with battery)

kg

1920/1970/2020

1400/1450/1500/1550/1600

Tread,front

b10(mm)

790

650

Tilt of mast/fork carriage forward/backward

Grad

2/5

2/5

Height,mast lowered

h1(mm)

2385

2115

Free lift

h2(mm)

1570

~

Max. lift height

h3(mm)

4500/5000/5500

2000/2500/3000/3500/4000

Height,mast extended

h4(mm)

5570/6070/6570

3070/3570/4070/4420/4920

Overall length

l1(mm)

3095

3020

Overall width

b1(mm)

1100/1100

950/1100

Fork dimensions

s/e/l(mm)

100x40x920

100x40x920

Aisle width for pallets 1000x1200 crossways

Ast(mm)

3014

2914

Aisle width for pallets 800x1200 lengthways

Ast(mm)

3100

3000

Turning radius

Wa(mm)

2050

2000

Travel speed,laden/unladen

Km/h

5/5.5

5/5.5

Lift speed,laden/unladen

m/s

95/120

90/125

Lowering speed,laden/unladen

m/s

150/120

150/120

Max.gradeability,laden/unladen

%

5/12

5/12

Drive motor rating S2 60 min

kW

1.2

0.9

Lift motor rating at S3 15%

kW

3

3

Battery acc. To DIN 43531/35/36 A,B,C,no



4PZS

4PZS

Battery voltage,nominal capacity K5

V/Ah

24/320

24/320

Battery weight

kg

275

275

Battery dimension l/w/h

mm

220x535x1020

270x535x812
